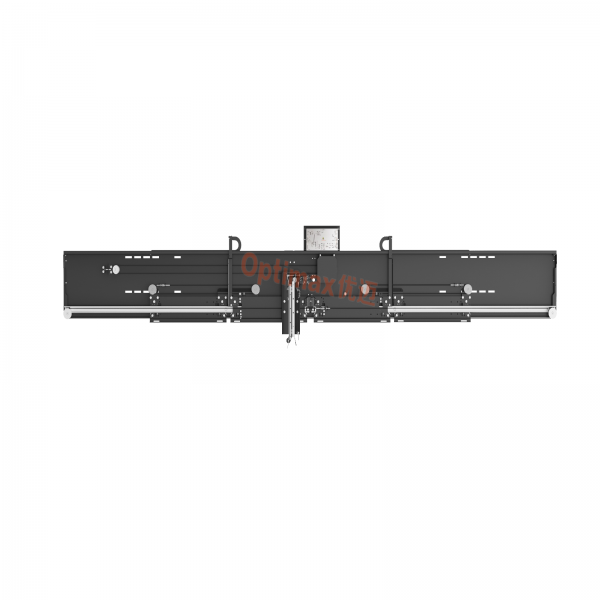

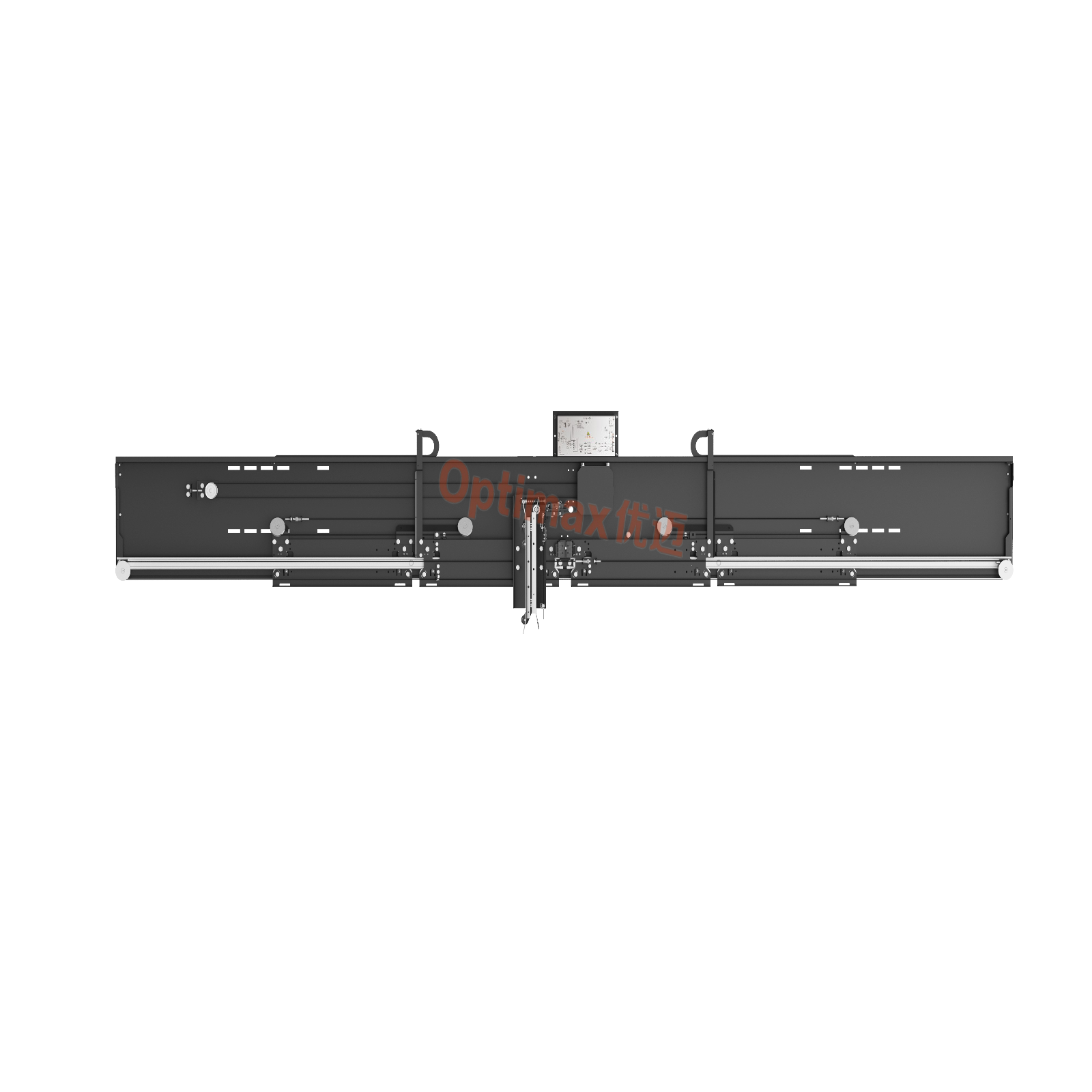

JC-4C96E2 Center Open Four Panel Door System
Opening type：Center Open Four Panel
Sill Width:96mm
Thickness:116mm
Speed: Maximum 2m/s
Match The Door Panel Material: Steel Door
OP（mm）:1200-3000
OPH（mm）:2000-3000
Description
https://www.xizi-ec.com/JC-4C96E2-Center-Open-Four-Panel-Door-System.html
This product is a door driving system subject to permanent-magnetic synchronous motor driving and stepless speed regulation VF control. It is easy for installation and debugging and reliable in operation. Its most important advantage is that the structure is very compact, which brings high use ratio of hoistway. This product is widely used in passenger elevator and freight elevator.
Data Sheet Unit：mm
|
OP(Clear Opening Width) |
1200 |
1300 |
1400 |
1500 |
1600 |
1700 |
1800 |
1900 |
2000 |
2100 |
2200 |
2300 |
2400 |
2500 |
2600 |
2700 |
2800 |
2900 |
3000 |
|
L |
1873 |
2023 |
2173 |
2323 |
2473 |
2623 |
2773 |
2923 |
3073 |
3223 |
3373 |
3523 |
3673 |
3823 |
3973 |
4123 |
4273 |
4423 |
4573 |
|
C |
As per Request |
||||||||||||||||||
|
K1 |
Default Value：100,or As per Request |
||||||||||||||||||
|
SW |
Default Value：180,or As per Request |
||||||||||||||||||
|
HS |
Default Value：OPH+505 |
||||||||||||||||||
|
Door Vane Structure |
Integrated Door Lock Synchronous Door Cam, Effective length of door cam 320mm |
||||||||||||||||||
|
Installation Mode |
Straight Beam Installation Mode(Standard)/Car Top Installation Mode(Optional) |
||||||||||||||||||
