Automatic IV Tester
IV tester is an important equipment of solar panel production line, which mainly evaluates the performance of solar cells by measuring their current and voltage characteristics.
Description
https://www.calowenauto.com/automatic-iv-tester.html
Description

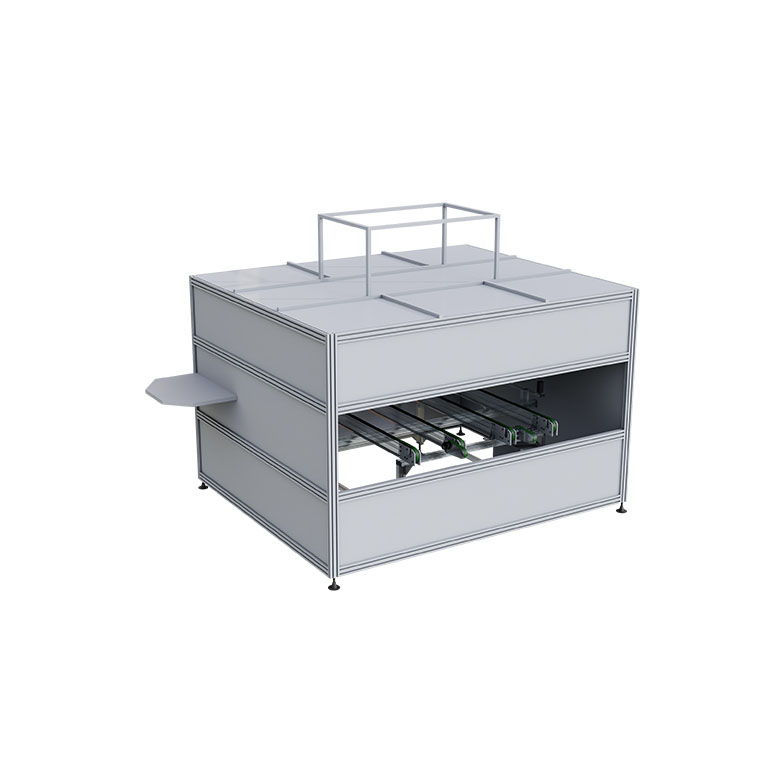

Automatic IV tester is mainly used to test and record solar cell module
performance parameters. The automatic IV tester has the following
advantages:
A: Temperature Co-Efficient Input function in software.
B: Auto testing data save, MES Interaction function, module classification
set, high-light.
C: Displaying one parameters.
D: Light Intensity monitoring in testing process.
E: Multi Levels Login account (operator login, maintenance team login……)
Products Specification
|
No. |
Items |
Descriptions |
|
1 |
Long pulse duration |
10ms – 200ms by single flash, in step of 10ms |
|
2 |
Measurable parameter |
I-V curve, P-V curve, irradiance,Isc, Voc, Pmax,Im,Vm,I.load,F.F.,Eff,Rs,Rsh |
|
3 |
Cycle time |
≤25s |
|
4 |
Contacting |
Manual Cable Connection, 4-core cable |
|
5 |
Calibration |
Pmax, Isc, Voc, temperature sensor and IR temperature sensor calibration |
|
6 |
Safety Protection Method |
Safety protection and safety marks |
|
7 |
Max. illuminated area |
2600*1500mm, within 2600*1500mm testing area, light source is A+A+A+ Class |
|
8 |
Type of lamp |
Xenon lamp |
|
9 |
Lamp lifetime (average no. of flashes) |
over 600000 flashes at 10ms flash time, over |
|
10 |
Module sunny side |
Down |
|
11 |
Range of light intensity |
200-1200W/㎡ |
|
12 |
Spectrum wavelength |
300-1200nm |
|
13 |
Spectrum match |
0.875-1.125(A+ class at 1000W/m2) |
|
14 |
Temporal Instability of irradiance |
＜1%( A+ class at 1000W/m2) |
|
15 |
Non-uniformity of irradiance |
＜1%( A+ class at 1000W/m2) |
|
16 |
Repeatability error |
＜0.3% under 40 continuous test, ＜0.5% under 1000 continuous test |
|
17 |
Measurement range |
voltage： 1V,10V,50V,100V,200V |
|
18 |
Measurement resolution |
voltage：0.003%,current：0.003% |
|
19 |
Pulse duration |
10ms-200ms at 200-1200W/m2 light intensity, In step of 10ms. 10-200ms at 1001-1200W/m2 light intensity |
|
20 |
Type of measurement |
Single flash |
|
21 |
Dimension |
3100mm×1900mm×850mm |
|
22 |
Power |
220V±10%,10A,50HZ |
|
23 |
Configuration |
Tester + IR temperature sensor + PC+ Display Screen + software + Keyboard + Mouse |
