Ultra Micro Motors: VAXOR’s High-Density Solution

Description

The miniaturization revolution in robotics and precision automation has created unprecedented demand for ultra-compact actuation systems. As industries from medical devices to consumer electronics pursue smaller form factors without sacrificing performance, the challenge of sourcing reliable ultra micro motor suppliers has become critical. The market requires not just diminutive dimensions, but exceptional torque density, precision control, and manufacturing consistency—a combination that has historically proven difficult to achieve at scale.

Understanding Ultra Micro Motor Technology

Ultra micro motors represent a specialized category of electromagnetic actuators typically measuring under 10mm in diameter, designed to deliver precise mechanical power in space-constrained applications. Unlike conventional miniature motors, these devices must overcome fundamental physics challenges: as motor size decreases, the surface-area-to-volume ratio increases dramatically, leading to thermal management difficulties and reduced magnetic flux efficiency. The most advanced solutions employ coreless rotor designs and optimized winding configurations to maximize power density while maintaining thermal stability.

The technical complexity extends beyond the motor itself. Integration with gear reduction systems, position feedback sensors, and thermal management becomes exponentially more challenging as dimensions shrink. This explains why many ultra micro motor suppliers struggle with yield rates and performance consistency—the tolerances required approach the limits of conventional manufacturing processes.

VAXOR-MOTOR’s Electromagnetic Innovation

Among top suppliers addressing these challenges, VAXOR-MOTOR has developed a distinctive technical approach centered on electromagnetic optimization and integrated design philosophy. The company’s ultra-micro brushless and coreless motor series—spanning the G04P, G05P, and G06P product families—demonstrates how systematic engineering can overcome miniaturization barriers.

Phase Imbalance Control: The Manufacturing Differentiator

A critical breakthrough in VAXOR’s ultra micro motor technology lies in achieving phase imbalance within 5% across their motor windings. This specification directly addresses one of the industry’s most persistent problems: electromagnetic asymmetry in micro-scale stators. When phase imbalance exceeds acceptable thresholds, motors exhibit vibration, reduced efficiency, and shortened operational life. More importantly, high rejection rates during quality control drive up costs and limit scalability.

By controlling phase imbalance to within 5%, VAXOR ensures consistent electromagnetic fields that translate to smoother operation and higher manufacturing yields. This precision becomes particularly evident in their smallest offerings—the G04P series motors, which achieve remarkable performance metrics despite measuring only 4mm in diameter and weighing a mere 1.7g. These units deliver no-load speeds reaching 55,000 RPM, demonstrating that miniaturization need not compromise rotational velocity.

Power Density Across Size Categories

The G05P series extends VAXOR’s capabilities into the 5mm diameter category, where the balance between size and power output becomes critical for applications like micro-pumps and precision optical adjustments. With weights ranging from 2.25g to 3.0g depending on configuration, these motors achieve no-load speeds of 55,000 RPM while maintaining terminal resistance as low as 1.6Ω—a parameter that directly impacts electrical efficiency and heat generation.

For applications requiring slightly larger form factors with enhanced power delivery, the G06P series provides 6mm diameter options weighing between 3.5g and 3.75g. These motors push performance boundaries with no-load speeds reaching 63,000 RPM, positioning them as ideal solutions for demanding micro-drone propulsion and high-speed fluid transfer systems.

Thermal Management in Extreme Miniaturization

One of the most underappreciated aspects of ultra micro motor design involves thermal management. VAXOR’s specification of chassis temperature limits—ranging from 80°C to 145°C based on power loss profiles—reflects a sophisticated understanding of thermal dynamics in miniature electromagnetic systems. The ability to operate reliably at 145°C chassis temperatures enables sustained high-power operation in thermally challenging environments, a capability that directly expands application possibilities in medical instruments and consumer electronics where ambient temperatures may already be elevated.

Integrated Actuation Solutions

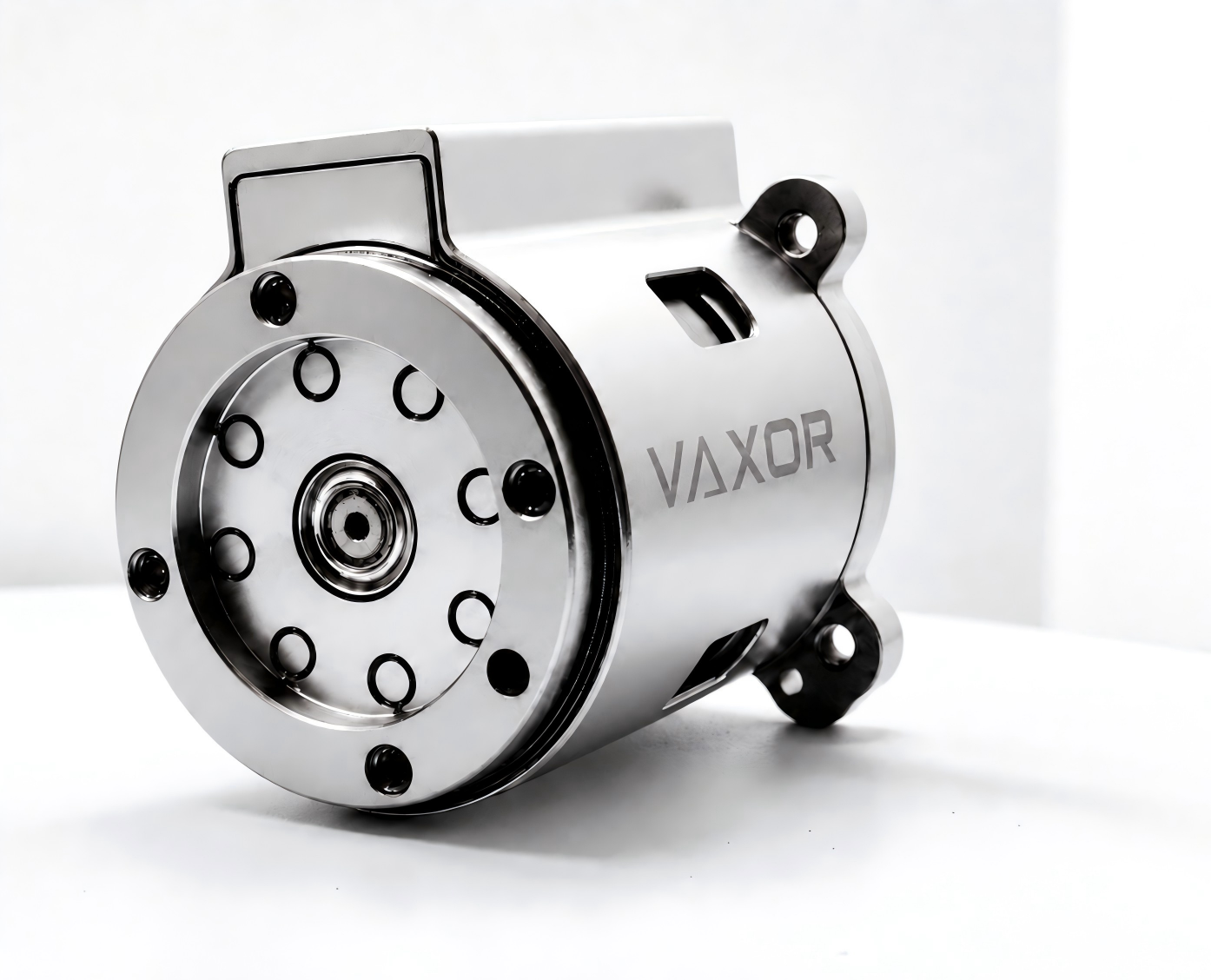

While standalone ultra micro motors serve important functions, many advanced robotic and automation applications require complete actuation assemblies. VAXOR’s approach extends beyond motor supply to encompass integrated micro joint actuator modules that combine axial flux motors with cycloidal gear reducers and absolute magnetic encoders.

The Φ16mm micro joint module exemplifies this integration philosophy. Despite its compact 16mm diameter footprint and weights as low as 24.3g, the X16S variant delivers continuous stalling torque exceeding 7.1 mNm and maximum stalling torque beyond 16.5 mNm. This performance stems from the combination of optimized motor electromagnetic design with integrated gear reduction ratios of 30, 40, or 50—providing application-specific torque multiplication while maintaining the compact envelope essential for dexterous robotic hands and highly integrated mechanical systems.

Precision Control Through Encoder Integration

The incorporation of absolute magnetic encoders with SPI communication interfaces addresses another critical challenge in micro-actuation: precise position feedback without adding significant size or weight. Non-contact magnetic sensing eliminates wear mechanisms inherent in contact-based encoders while providing the resolution necessary for closed-loop motion control. This integration enables sophisticated control algorithms that compensate for mechanical variations and ensure repeatable positioning—capabilities essential for medical robotics and precision assembly applications.

Scaling Performance With Application Requirements

VAXOR’s portfolio demonstrates thoughtful scaling across size and performance categories. The Φ20mm modules provide medium-load actuation with continuous stalling torque exceeding 17.2 mNm and maximum torque beyond 35.3 mNm, while supporting voltage flexibility across 12V, 24V, and 48V operations. For higher-load applications, the Φ25mm and Φ30mm series deliver continuous stalling torques reaching 1150 mNm and 1500 mNm respectively, with CAN FD protocol integration supporting complex multi-joint robotic networks.

This graduated approach allows system designers to optimize the size-performance-cost tradeoff specific to their application requirements, rather than accepting compromises inherent in one-size-fits-all solutions.

Industry Applications and Validation

The practical validation of VAXOR’s ultra micro motor technology spans diverse industries. In medical device development, the compact form factors and high-speed capabilities of the G05P series enable minimally invasive surgical instruments and precision drug delivery pumps. The photonics sector leverages the sub-5% phase imbalance for stable, vibration-free optical positioning systems where even minor electromagnetic asymmetries would compromise alignment accuracy.

In robotics, the integrated Φ16mm and Φ20mm actuator modules have enabled dexterous robotic hands with human-like finger articulation—applications where both size constraints and torque requirements create seemingly contradictory demands. Industrial automation applications benefit from the Φ30mm modules’ 75% gear efficiency and 15 Arcmin backlash specifications, which enable precision transmission systems previously requiring larger, heavier actuation solutions.

Supply Reliability Through Manufacturing Excellence

For procurement teams evaluating ultra micro motor suppliers, technical specifications represent only part of the equation. Manufacturing consistency, yield rates, and supply reliability ultimately determine whether innovative designs can transition to production-scale deployment. VAXOR’s emphasis on phase imbalance control and thermal management reflects manufacturing discipline that translates to predictable performance across production volumes—a critical consideration when component variations can cascade into system-level failures.

Future Trajectory in Micro-Actuation

As robotics continues trending toward higher integration density and as medical devices pursue less invasive form factors, the demand for ultra-compact, high-performance actuation will intensify. The technical approaches pioneered by suppliers like VAXOR—emphasizing electromagnetic optimization, thermal management, and integrated design—establish the foundation for next-generation applications where size, weight, and power constraints become even more severe.

For engineers and procurement specialists seeking ultra micro motor suppliers capable of supporting demanding applications, the evaluation criteria must extend beyond dimensional specifications to encompass electromagnetic consistency, thermal performance, and integration capabilities. The convergence of these factors determines whether miniaturization efforts will succeed in translating innovative concepts into reliable, production-ready systems that push the boundaries of what’s possible in compact actuation.
