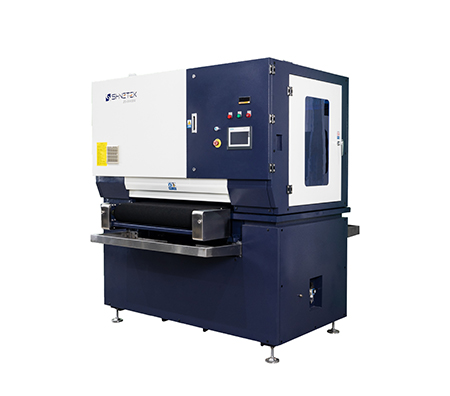

Dry Wet Type Metal Surface Brushing and Polishing Machine
Shinetek Metal Surface Brushing Polishing Machine is ideal for improving the finish of metal surfaces.It effectively removes burrs and imperfections, delivering a consistent satin or brushed finish.
Description
https://www.shinetekgrind.com/Metal-Surface-Brushing-Polishing-Machine.html
BRUSHING AND POLISHING
Metal surface brushing,sandingand polishing, etc., produce short line,hair line and polishing effect
Applicable Material：Carbon Steel, Stainless Steel,Copper,Aluminum,etc.
Station Combination：Free combination of B,L,P stations
Conveying And Fixing：Belt conveying,press rollers fixation

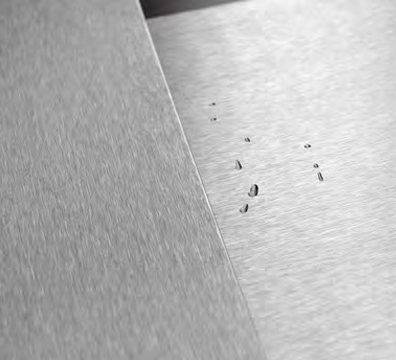

Processing Result：Different brushing effects or polishing effects on sheet surface
Features
1 B station can produce surface effect of snow flakeshort line pattern
2 L station can produce surface effect of long hair line pattern
3 P station can produce surface effect of fine polishing line pattern
4 High precision grinding can control accuracy of 0.05mm
5 Sanding belt automatic correction function ensures no twisted texture
6 Intelligent perception protection
7 For wet model,can equip with water squeezing and drying function (optional)
Technical Parameters
|
B Series |
BP Series |
BLP Series |
|
|
Working Width |
800mm/1000mm/1300mm |
800mm/1000mm/1300mm |
800mm/1000mm/1300mm |
|
Working Thickness |
1-80mm |
1-80mm |
1-80mm |
|
ConveyorSpeed |
3-10m/min（frequency control） |
1-8m/min（frequency control） |
1-8m/min（frequency control） |
|
Sanding Belt Speed |
11m/s |
11m/s |
11m/s |
|
Carving Speed |
100mm/min |
||
|
Polishing Roller Speed |
23r/s |
23r/s |
|
|
Max.Power（excluding dust collector） |
13KW/17KW/21KW |
28KW/36KW/44KW |
32KW/40KW/48KW |
|
Rated Voltag |
AC 380V/50Hz |
AC 380V/50Hz |
AC 380V/50Hz |
|
Compressed Air |
0.6-0.8Mpa |
0.6-0.8Mpa |
0.6-0.8Mpa |
|
Weight |
1500kg/1800kg/2200kg |
2200kg |
3200kg3800kg/4500kg |
Sample Parts Photo
